Construction Passenger & Material Hoist
- High safety with multiple protection systems
- Accurate bending and cutting
- Electrical braking for low maintenance
- Foot pedal control for operator safety
- Heavy-duty and reliable design
Description

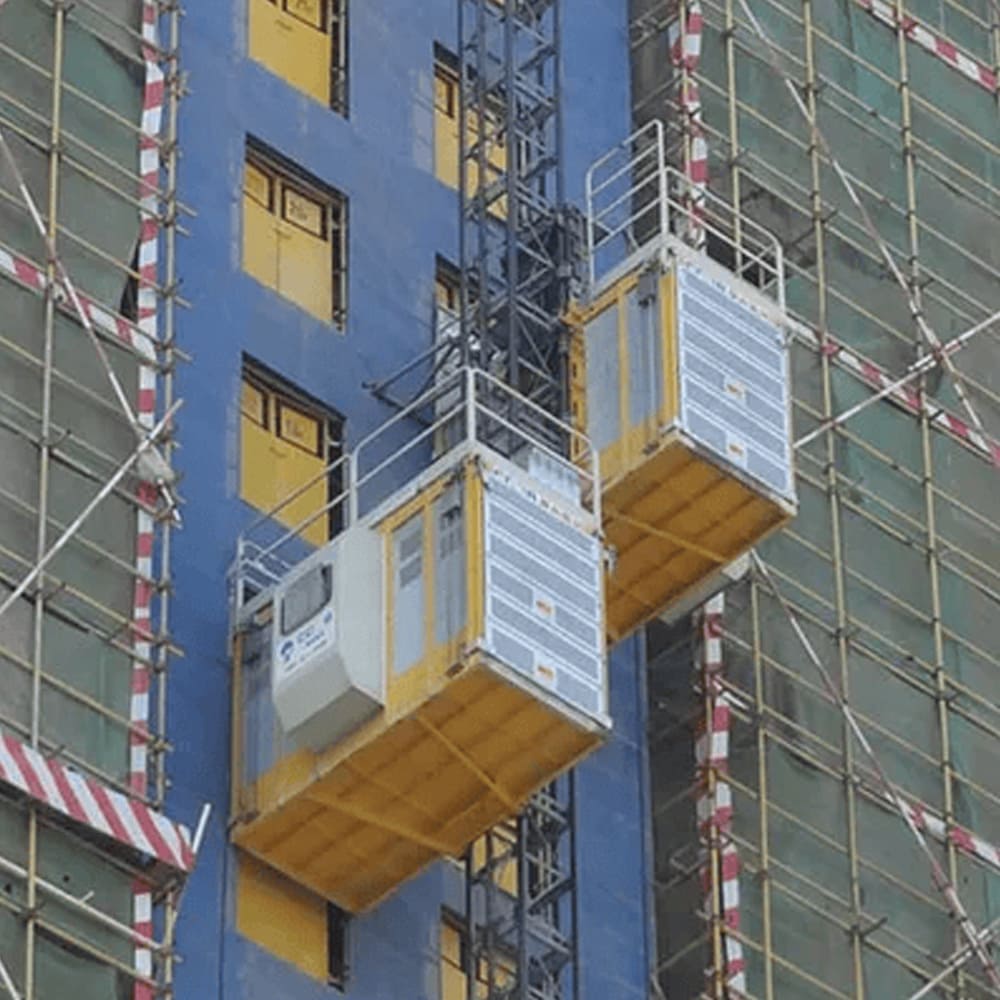

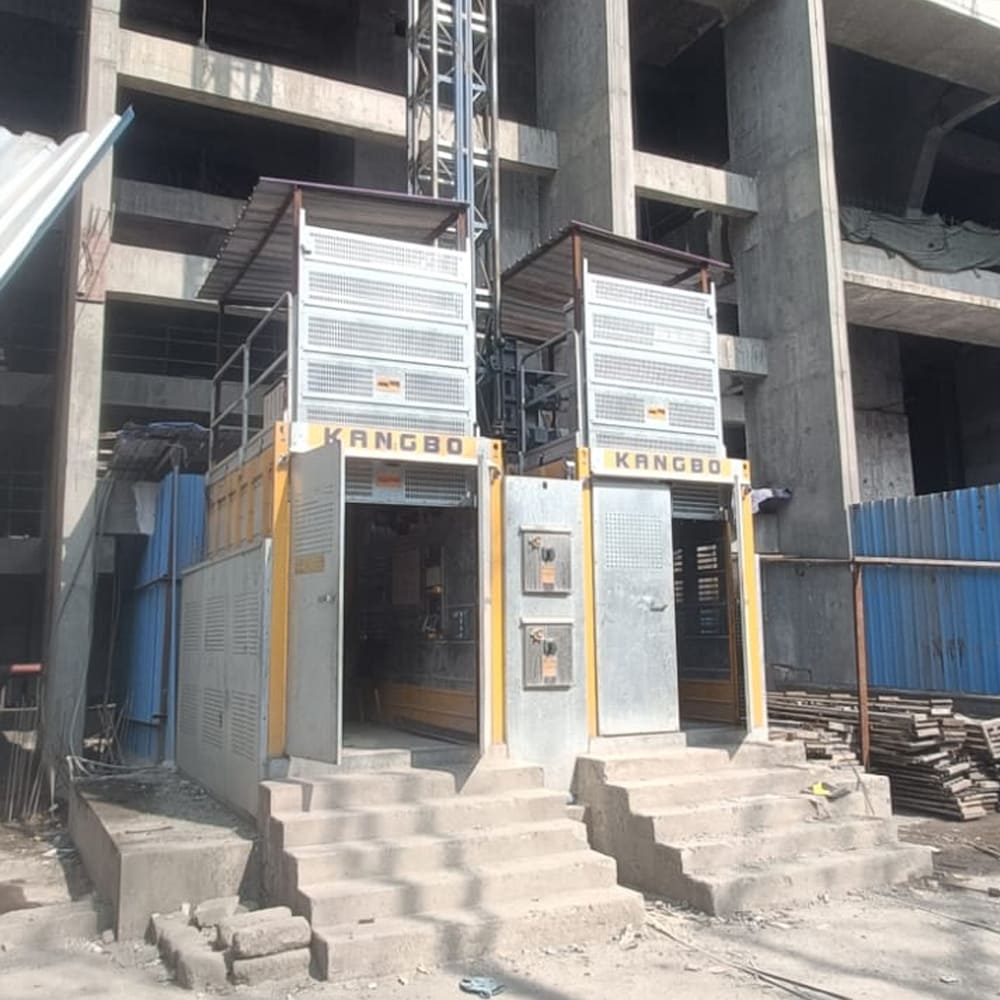

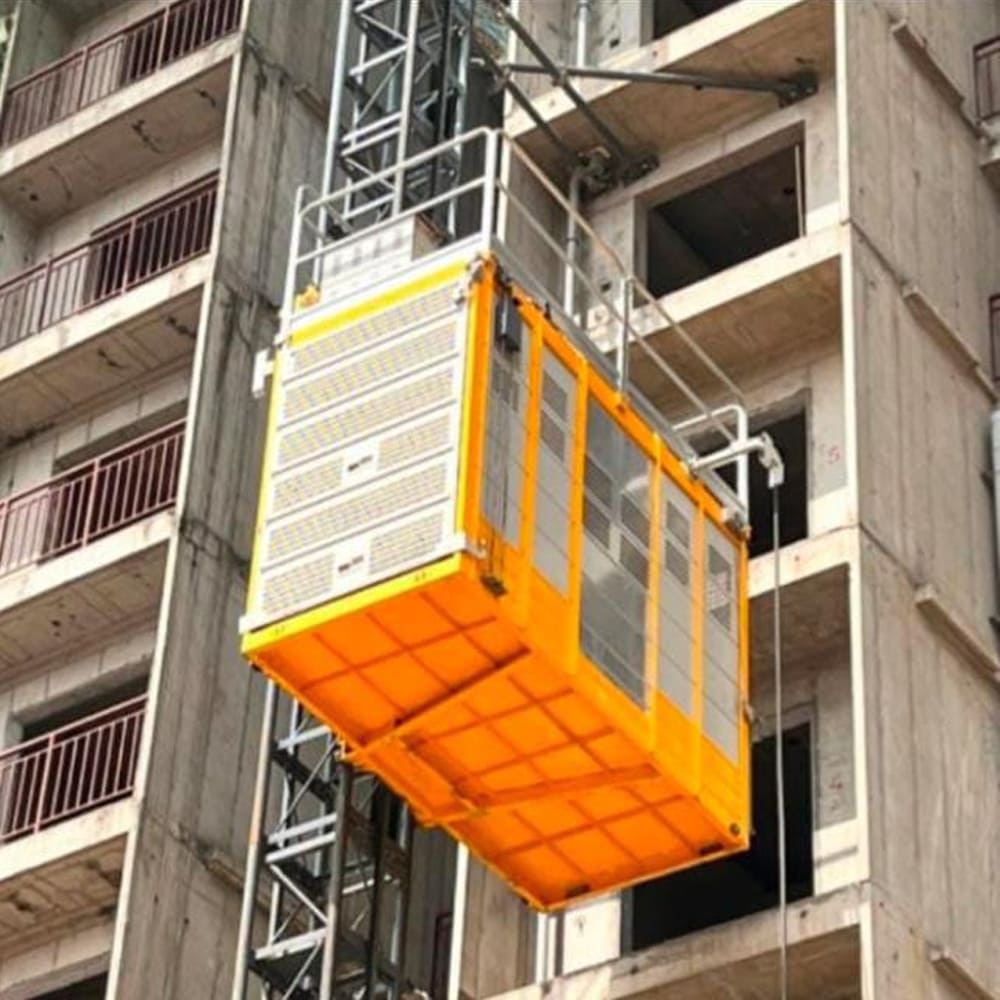

Construction Hoists are used for vertical transportation of men and material at construction sites where safety and reliability are critical. Kreative Engineering & Electrical provides high-quality Rack & Pinion Construction Hoists designed with the latest technology and multiple safety systems. These hoists are ideal for high-rise projects and are built to ensure smooth operation, maximum safety, and long service life. We also provide customized cabin (cage) sizes as per site requirements.
Our Construction Hoist (Passenger & Material Lift) is having following safety features :
- Centrifugal Brake
- Upper Limit Switch
- Bottom Limit Switch
- Speed Limit Switch
- Ultimate Limit Switch
- Door Limit Switches
- Trap Door Limit Switch
- Interlocking Doors
We also offer BUS BAR in lieu of Power Cable which is best option available for high rise towers. Bus bar option is a remedy on huge recurring expenses on cable damage problem.
Specifications
We can supply customized size of Cabin (Cage) which suits your site requirements.
|
Carrying Capacity
|
No. of Cages
|
Available Speeds (m/min)
|
Max Working Height
|
|
1 Ton
|
01 No.
|
0~45, 50, 60
|
250 mtr
|
|
1 Ton
|
02 Nos.
|
0~45, 50, 60
|
250 mtr
|
|
1.5 Ton
|
01 No.
|
0~40, 46, 60
|
300 mtr +
|
|
1.5 Ton
|
02 Nos.
|
0~40, 46, 60
|
300 mtr +
|
|
2 Ton
|
01 No.
|
0~40, 46, 60
|
300 mtr +
|
|
2 Ton
|
02 Nos.
|
0~40, 46, 60
|
300 mtr +
|
|
More than 2 Tons
|
As per requirement
|
As per requirement
|
300 mtr +
|
